Flexplate

Removal

1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


1. Refer to: Transmission - 2.5L Duratec (125kW/170PS) (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).

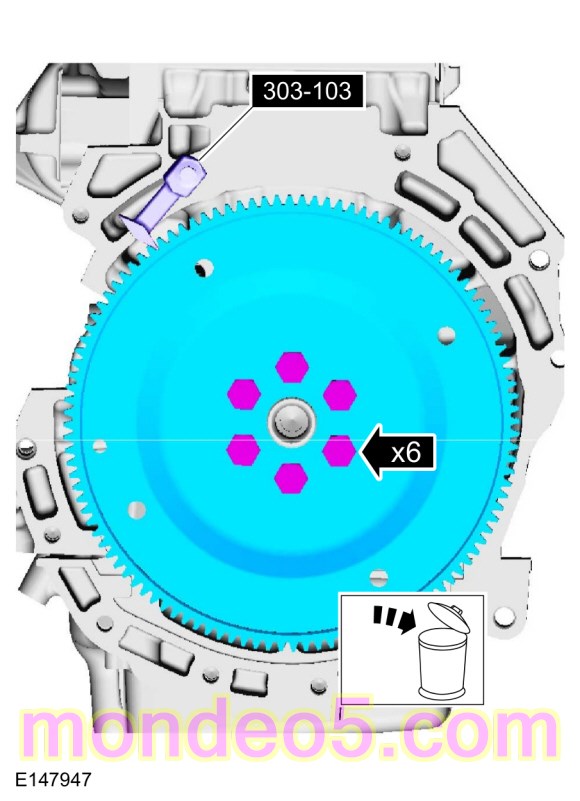

1. Discard the specified component. Follow local disposal regulations.
   Special Tool(s) : 303-103 (T74P-6375-A) Holding Tool, Flywheel

Installation

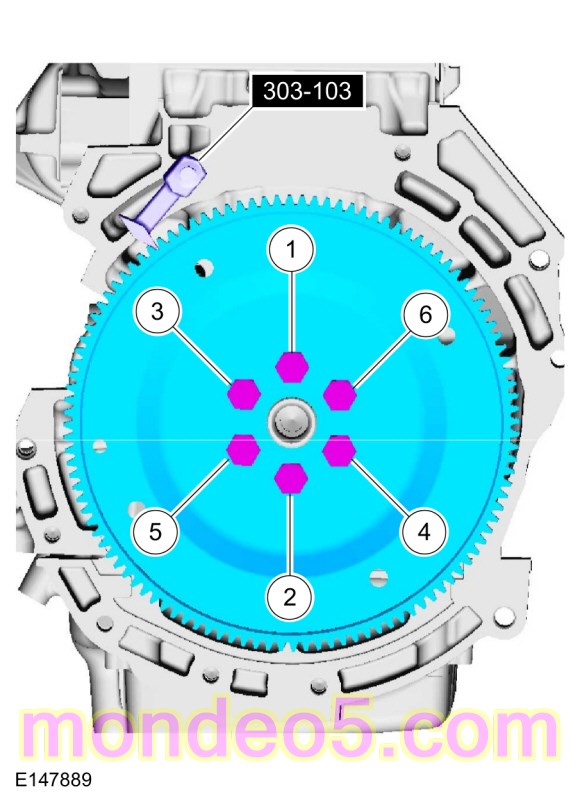

1. Special Tool(s) : 303-103 (T74P-6375-A) Holding Tool, Flywheel
   Torque :
     Stage 1:  50 Nm
     Stage 2:  80 Nm
     Stage 3:  112 Nm

1. Refer to: Transmission - 2.5L Duratec (125kW/170PS) (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).


1. After completing the repairs, preform the Misfire Monitor Neutral Profile Correction procedure.
