Flexplate

Removal

1. Refer to: Transmission - 1.6L EcoBoost (132kW/180PS) - Sigma (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).


Installation

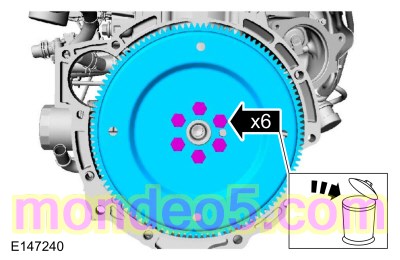

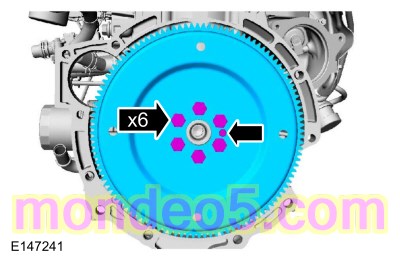

1. Finger tight.

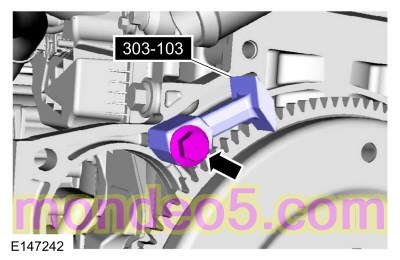

1. Install Special Service Tool : 303-103 (T74P-6375-A) Holding Tool, Flywheel

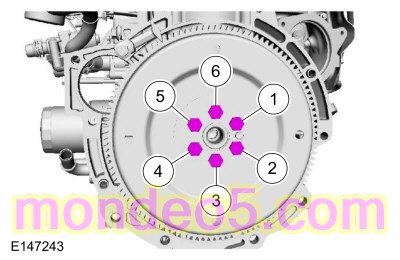

1. Torque :
     Stage 1:  15 Nm
     Stage 2:  25 Nm
     Stage 3:  30 Nm
     Stage 4:  Tighten an additional 90°

1. Remove Special Service Tool : 303-103 (T74P-6375-A) Holding Tool, Flywheel

1. Refer to: Transmission - 1.6L EcoBoost (132kW/180PS) - Sigma (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).


1. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
