Front Camber Adjustment - Vehicles Built From: 20-May-2013

2014 Model Year Vehicles

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Using alignment equipment and the manufacturer's instructions, measure the front camber.
   General Equipment : Wheel Alignment System

1. NOTE: Replace bolts and nuts with new service bolts and nuts.

   NOTE: Original equipment bolts are splined, service bolts are smooth and smaller in diameter.

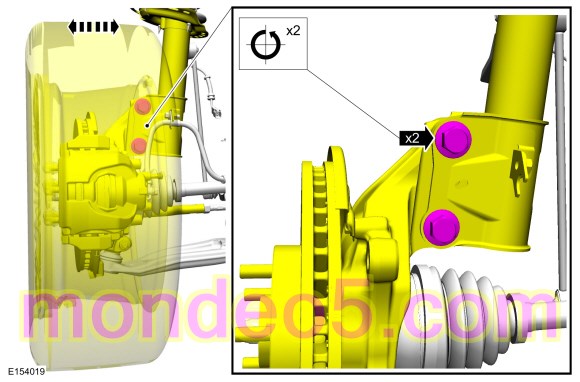

   NOTE: Adjustment from maximum inboard to maximum outboard is .5  .

   Torque : 235 Nm

1. Recheck alignment to verify camber change and adjust front toe if necessary.
   Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).


2013 Model Year Vehicles

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

1. Using alignment equipment and the manufacturer's instructions, measure the front camber.
   General Equipment : Wheel Alignment System

1. NOTE: Adjustment from maximum inboard to maximum outboard is .5  .

   Torque : 235 Nm

1. Recheck alignment to verify camber change and adjust front toe if necessary.
   Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
