Cooling Fan Motor and Shroud

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Cooling System Draining and Vacuum Filling (303-03A Engine Cooling - 1.5L EcoBoost (118kW/160PS), General Procedures).


1. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS), Removal and Installation).


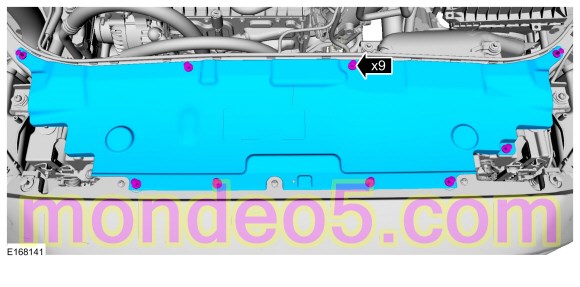

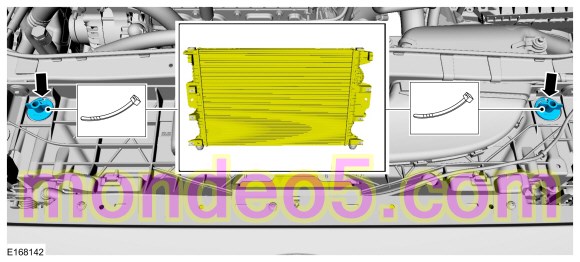

1. General Equipment : Cable Ties

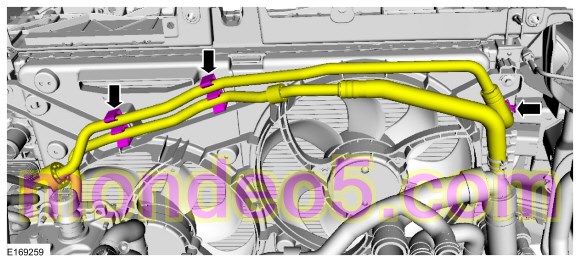

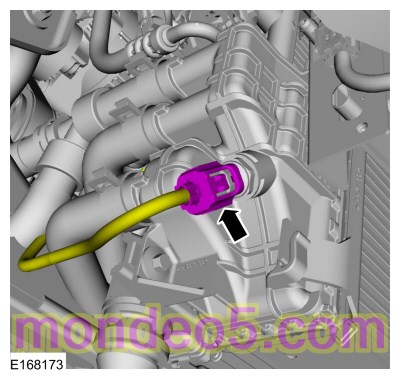

1. General Equipment : Hose Clamp Remover/Installer

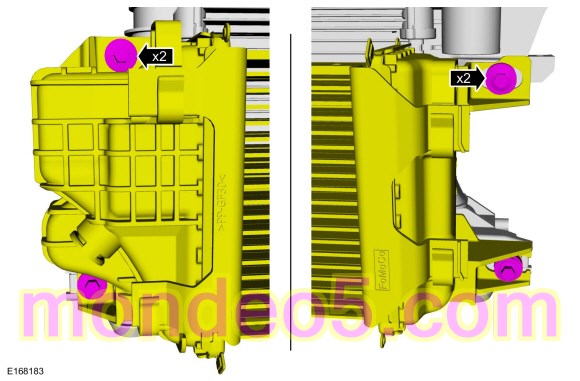

1. Torque : 5 Nm

1. Torque : 6 Nm

1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


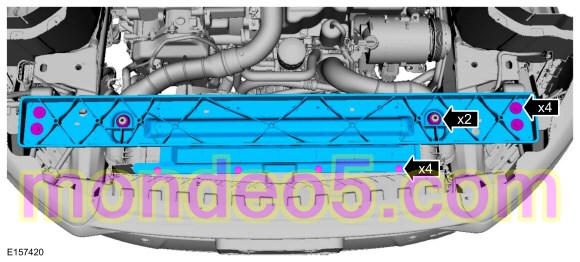

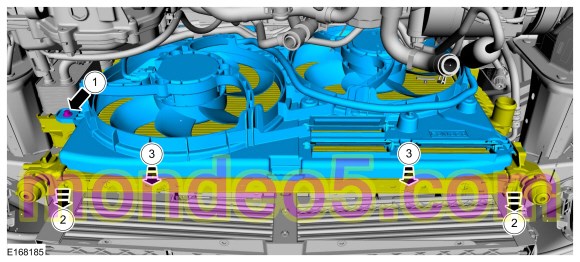

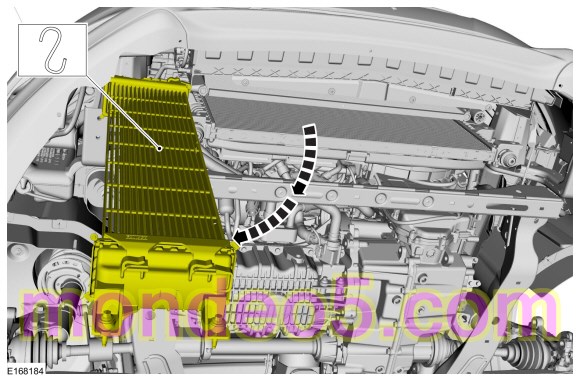

1. Torque : 24 Nm

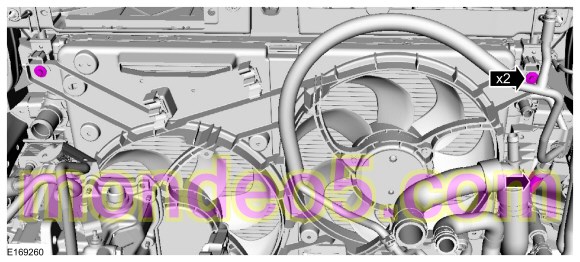

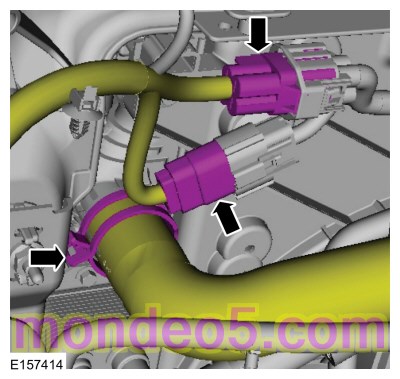

1. Torque : 6 Nm

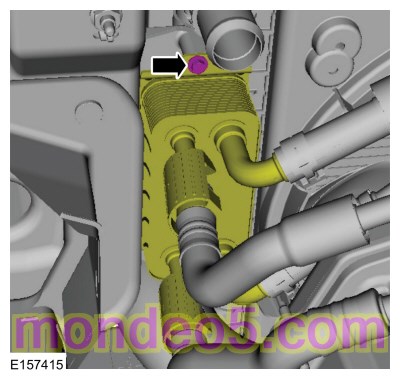

1. 1. Torque : 6 Nm

Installation

1. To install, reverse the removal procedure.
