308-06 Manual Transmission External Controls 2013 - 2014 Fusion
General Procedures Procedure revision date: 08/30/2012

Gearshift Cable Adjustment

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

  1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Apply the parking brake.
  1. Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma, Removal and Installation).

  1. NOTE: Move the select lever back and forth to verify free motion.

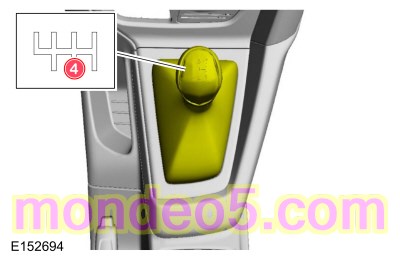

  1. NOTE: By placing the gearshift lever into the 4th gear position, it locks the small lever into the N position.

  1. Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma, Removal and Installation).
    1. Release the parking brake.
