307-05 Automatic Transmission External Controls 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 07/16/2013

Selector Lever Cable

Removal

  1. With the vehicle in N , position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS), Removal and Installation).
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma, Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).

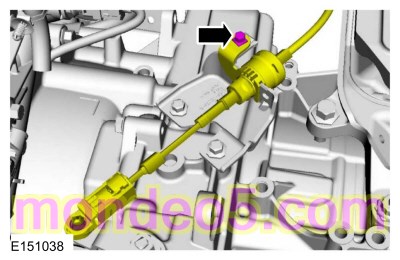

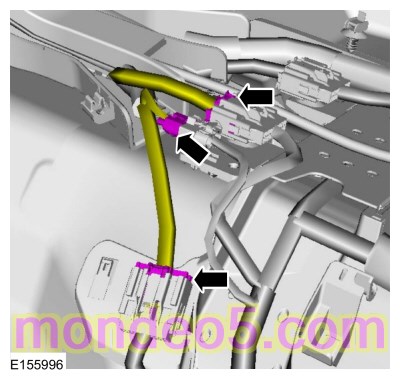

  1. If equipped.
  1. Remove the floor console.
    Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

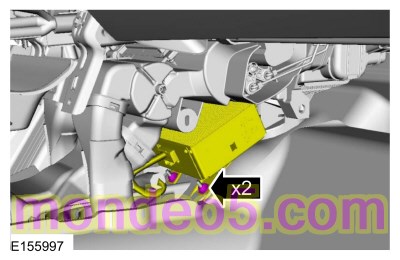

  1. On both sides

Installation

  1. Torque : 9 Nm
  1. Torque : 9 Nm
  1. On both sides
  1. Torque : 7 Nm
  1. Install the floor console.
    Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
  1. If equipped.
  1. Torque : 7 Nm

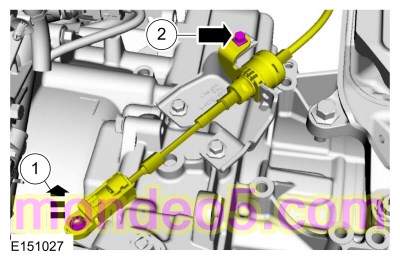

    1. Rotate the manual control lever clockwise until it stops.
    1. Rotate the manual control lever counterclockwise 1 detent.
    1. Move the slide to the left.
    1. While holding the slide, position the adjuster lock upward.
  1. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS), Removal and Installation).
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma, Removal and Installation).
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12D Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).
  1. Verify that the vehicle starts in P and N only and that the reverse lamps illuminate in R .
