Flexplate

Removal

1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


1. Refer to: Transmission - 2.0L EcoBoost (184kW/250PS) - MI4 (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).


1. NOTE: Do not reuse the flexplate bolts.

   Special Tool(s) : 303-103 (T74P-6375-A) Holding Tool, Flywheel

Installation

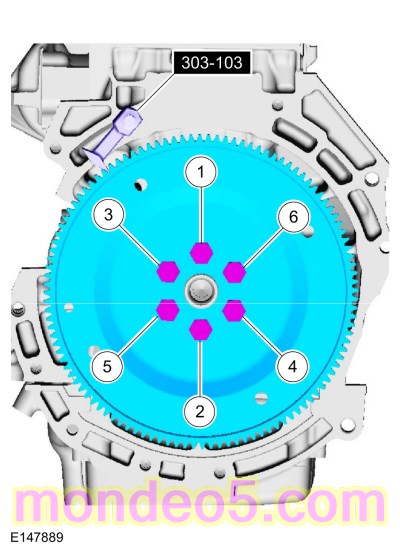

1. NOTE: Special bolts are used for installation. Do not use standard bolts.

   Special Tool(s) : 303-103 (T74P-6375-A) Holding Tool, Flywheel
   Torque :
     Stage 1:  50 Nm
     Stage 2:  80 Nm
     Stage 3:  112 Nm

1. Refer to: Transmission - 2.0L EcoBoost (184kW/250PS) - MI4 (307-01 Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal and Installation).


1. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
