303-00 Engine System - General Information	2013 - 2014 Fusion
General Procedures	Procedure revision date: 08/28/2012

Piston Diameter

NOTE: Refer to the appropriate Section 303-01 for the specification.

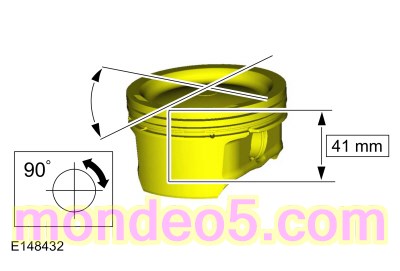

Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
