Starter Motor

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

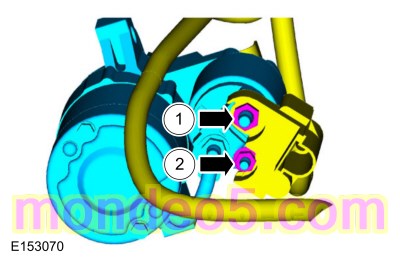

1. 1. Torque : 11 Nm
   2. Torque : 5 Nm

1. 1. Torque : 18 Nm
   3. Torque : 48 Nm

1. 1. Torque : 12 Nm
   2. Torque : 6 Nm

1. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection (303-06B Starting System - 2.0L EcoBoost (184kW/250PS) - MI4, General Procedures).


Installation

1. To install, reverse the removal procedure.
