204-00 Suspension System - General Information 2013 - 2014 Fusion
General Procedures Procedure revision date: 07/19/2012

Ride Height Measurement

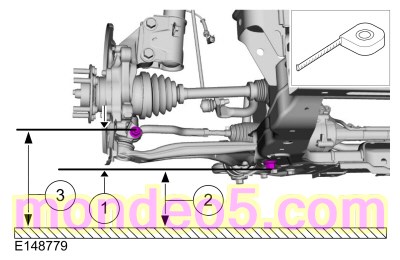

NOTE: Ride Height Measurement - Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

    1. Ride height = 3-2
    1. Measurement 2
    1. Measurement 3

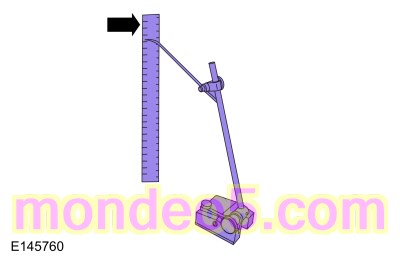

      General Equipment : Surface Gauge
  1. With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 3).
    General Equipment : Surface Gauge
  1. Subtract measurement 2 from measurement 3 to obtain the front ride height.

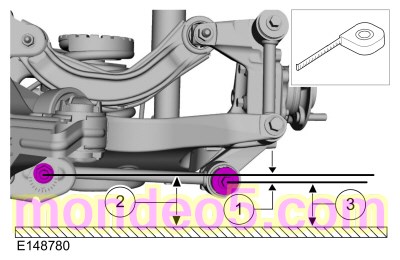

NOTE: Ride Height Measurement - Rear

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

    1. Ride height = 2-3
    1. Measurement 2
    1. Measurement 3
      General Equipment : Surface Gauge
  1. Measure the distance between the flat level surface and the toe link inboard cam bolt (measurement 2).
  1. Measure the distance between the flat level surface and the center of the toe link outboard bolt (measurement 3).
  1. Subtract measurement 3 from measurement 2 to obtain the rear ride height.
