303-01B Engine - 1.6L EcoBoost (132kW/180PS) - Sigma 2013 - 2014 Fusion
Removal and Installation Procedure revision date: 01/15/2013

Flywheel

Removal

  1. Refer to: Clutch Disc and Pressure Plate (308-01 Clutch, Removal and Installation).

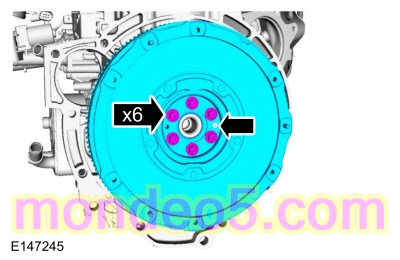

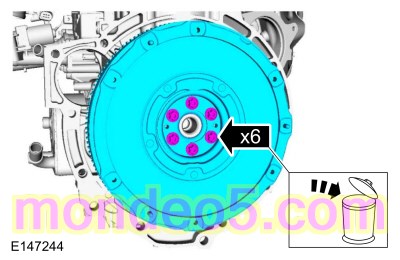

  1. Refer to: Flywheel Inspection (303-00 Engine System - General Information, General Procedures).

Installation

  1. Finger tight.

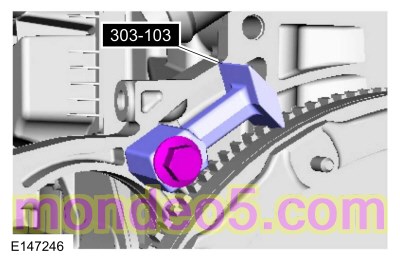

  1. Install Special Service Tool : 303-103 (T74P-6375-A) Holding Tool, Flywheel

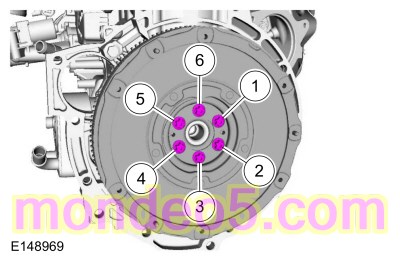

  1. Torque :
      Stage 1:  15 Nm
      Stage 2:  25 Nm
      Stage 3:  30 Nm
      Stage 4:  Tighten an additional 90°
  1. Remove Special Service Tool : 303-103 (T74P-6375-A) Holding Tool, Flywheel
  1. Refer to: Clutch Disc and Pressure Plate (308-01 Clutch, Removal and Installation).
  1. Perform the Misfire Monitor Neutral Profile Correction procedure.
